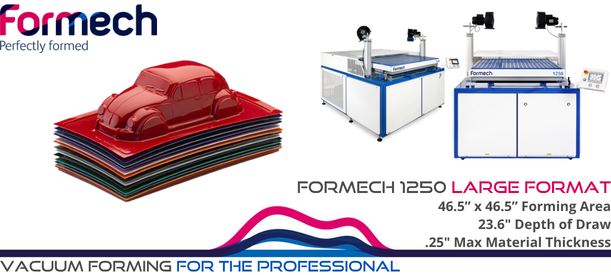

Formech 1250 Vacuum Forming Features
7" Colour HMI/PLC featuring Formech Cycle View (FCV)
Wago control system with 7" colour touch screen, real time adjustments, 1% heater increment control, Formech Cycle View and 40 preset memories.

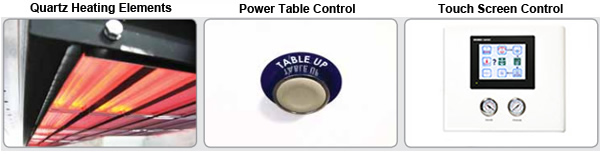

Quartz Heaters with Variable Standby
Quartz heaters have the benefit of a rapid response and high efficiency resulting in time and energy savings.
25 Independently Controllable Heating Zones
Twenty five heating zones and quartz heaters provide rapid heat response with a greater range of control to form challenging shapes and materials
Electric Heater Drive
Electrically powered heater travel for convenient operation. Controlled speed and braking prevents damage to elements.
Pneumatic Trigger Clamps
Pneumatically powered clamping system that provides powerful and effortless control.
Power Table
Lifts tool table quickly and precisely making effortless operation, even with heavy tools. Twin controls avoid accidental activation.
Table Height Adjust
Table height adjust shortens the tool table travel when using shallow tools and reduces cycle time.
Pre-Stretch
Pre-stretch enables the user to pump air into the heated sheet, creating a bubble to avoid thinning of material with deeper tools.
Auto-Level
Avoids material sag during the heating cycle and maintains an even distance between heater and sheet whilst providing the user with an audible indication the material is ready to form.
Vacuum Receiver Tank
A vacuum tank that provides instant stored vacuum, for high demanding materials and shortening cycle times.
Vacuum & Pressure Gauges
A visual indication of consistent vacuum and pressure being applied (pressure in Hg / bar).
Twin Cooling Fan System
Overhead gantry and twin 550W fans to cool formed material and shorten cycles times.
Oil filled rotary vane pump 21m3 / hr
