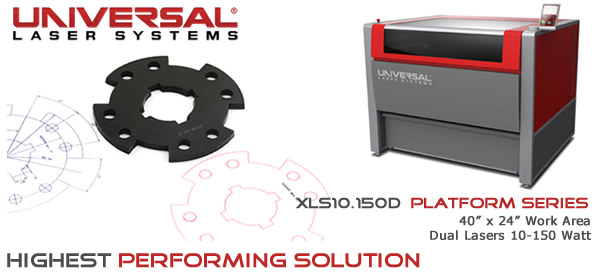

Universal Laser XLS10.150D Laser Features
Air-Cooled Laser Source
Because our laser sources are air-cooled, no complicated liquid cooling systems are required.
High Reliability, Excellent Power Stability
Our laser sources provide consistent power for predictably excellent processing results.
Laser Fan Control (to reduce noise)
Universal’s lasers are all air cooled by computer-controlled fans. Fan speed is reduced or increased as a function of laser temperature, reducing noise levels when the lasers are being used on lower power settings.
Laser Pointer
A red laser pointer is installed for easy material alignment.
Patented Cross-Platform Compatibility
Laser sources can be freely interchanged between laser platforms.
Patented Free-Space Gas Slab Laser Design
Our patented laser sources use free-space gas slab resonators to produce an excellent quality beam with even power distribution and good near and far field characteristics.
Patented Pre-Aligned Laser Sources
Laser sources are pre-aligned at the factory and do not need to be internally realigned.
Smart Laser Source Technology
Because we manufacture our own lasers, Universal’s lasers can communicate their model number to the laser system CPU, allowing the laser system to automatically choose the right settings for a particular material based on available laser power.
Warranty Available Up To 5 Years
Our standard warranty can be extended for up to half a decade of coverage.
Wide Selection of Power Levels
Lasers are available at power levels from 10 to 150 watts.
Coaxial Gas Assist Attachment
The Coaxial Gas Assist option attaches to the carriage for use in gas assisted laser processing. It directs compressed gas coaxially with the laser beam path and orthogonal to the surface of the material.
Collimator
The Collimator expands and collimates the laser beam, minimizing divergence across the laser processing area producing more consistent focal spot size and energy density.
Compressed Air Source
The Compressed Air Source is a quiet, compact compressed air system that provides clean, oil- and moisture-free optical quality air to the laser system for air assisted laser processing and optics protection.
Computer Controlled Gas Assist (with Optics Protection)
Gas Assist with Optics Protection creates positive air pressure around all optics and directs compressed air or gas onto the surface of the material being processed. The compressed air or gas directed at the material keeps debris and particulate and fumes away from the optics, suppresses combustion of fumes, reduces accumulation of particulate on material surface, and increases cut quality on most materials. Computer control allows the user to adjust the percentage of air or gas flow through a system of automatic valves allowing differing settings for each process within a laser processing application
Direct File Import
This feature allows a user to import certain types of files directly into the laser system control software, without the need to print from any third party software. On the XLS, it is compatible with PDF, DXF, STL and G-code file formats.
High Precision Dual Loop Servo Motor Control
The system is driven by high power dual loop servo motors using rotary and linear encoders together to provide fast acceleration and highly controlled motion.
High Value Materials Database
This feature provides access to and extended materials database which including materials from 3M, DuPont, Rodger and others.
Hydrostatic Friction Free Bearing Technology
The motion system employs frictionless hydrostatic bearings. These bearings are non-contact and self-cleaning. They are extremely rigid and reduce hysteresis and vibration found in mechanical bearings.
Intelligent Laser Energy Management Engine
This feature maintains consistent energy density at any processing speed producing uniform marks and constant depth when cutting, marking and engraving.
Laminated Safety Glass
Glass viewing windows creating a safe enclosure for laser processing.
Multiple Automatic Focusing Methods
All Universal laser systems can be focused automatically based on material thickness or by using a convenient manual focusing tool. Some Universal laser systems can also be automatically focused using special sensors to detect the top surface of the material being laser processed.
Multiple Language Support
Supported languages include English, German, Japanese, Spanish, French, Italian, and more.
Over-Temp Alarm (for fire safety)
An over temperature alarm installed in every Universal laser system monitors the temperature of the work area. If an unusually high temperature is detected the system will turn off the laser and trigger an audible alarm.
Stretch-Free Kevlar® Belts
Durable belts provide a long life of reliable processing.
Touchscreen Control Panel
Color touch screen control panel for rapid setup and convenient process control including relocation of design files on processing field.
Wraparound Top and Front Door
The front and top doors of ILS laser systems mate with each other in a clamshell configuration for maximum ease in loading and unloading.
